Istio — How it solves EiT (Encryption-in-Transit) in a Microservices Architecture (MSA)

Introduction

With a growing demand for MSA due to its various advantages, Organizations are containerizing their workloads faster and migrating them to their preferred Container Orchestration Platform such as Kubernetes (Self-managed, EKS, GKE, AKS, IKS, Redhat OCP and many more). This poses various challenges too including securing your data in transit. As none of these Kubernetes platforms provides out-of-the-box TLS/mTLS encryption enabled between pod to pod communication, it becomes seriously challenging for Organizations to obtain, manage and rotate various certificates, keys etc. used to encrypt communication between various services.

Consider the below diagram and treat it as a MSA in its simplest form with only 2 services in action.

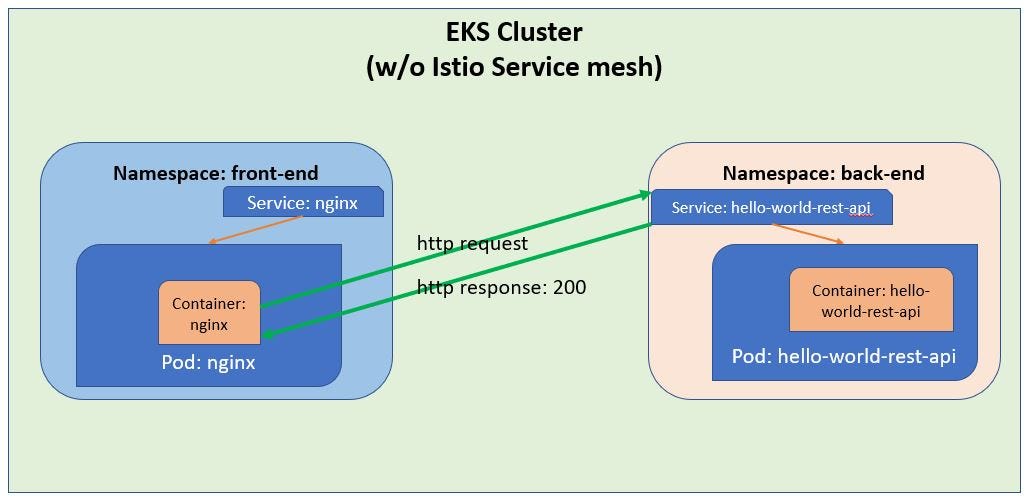

EKS Cluster without Istio Service mesh enabled

Let’s consider a 2-tier application architecture with a front-end webserver (Nginx in this case) and back-end hello-world-rest-api application. They have their own pods running as well as Kubernetes service created and accessible. Now, if we make a curl request from nginx pod to the service hello-world-rest-api in namespace back-end, the http response code will be 200 which is expected. It must be noted here that the communication is happening in a plain-text mode now.

If we want to make the above communication encrypted (TLS and not mTLS), the development team needs to copy the server.crt and private.key in the hello-world-rest-api pod (the image needs to be updated using its Dockerfile) and the public.key must be copied into the nginx pod in a similar way. The communication between the services is encrypted using TLS but still not authenticated using mTLS (Mutual TLS, where both client and server trust each other). The below figure shows encryption enabled state of the 2 microservices.

EKS Cluster without Istio Service mesh enabled, TLS enabled

Let’s try to see what needs to be done further in order to enable mTLS communication between the services. The development team needs to perform additional work of copying server.crt and private.key in the nginx pod as well as copying the public.key into the hello-world-rest-api pod. The communication between services is now encrypted and authenticated using mTLS. The below figure shows mTLS encryption enabled state of the 2 microservices.

EKS Cluster without Istio Service mesh enabled, mTLS enabled

The additional steps mentioned above which the development team must perform is just the tip of the iceberg of the challenges to solve the EiT issue for services in MSA. There are many hidden challenges as well. Some of them are listed below:

  1. The Organization must have their own Certificate Authority, private key and store them securely
  2. (optional, create a sub-CA only for your microservices)
  3. Generate all certificates by this CA (involves generating CSR etc.)
  4. Use Trust stores for keeping the public keys and Key stores for storing private keys
  5. Microservices architecture principle also recommends not to use same certificates for all microservices. This means repeat above processes for different services (imagine if your application has 100 or 1000 microservices)
  6. Manage and rotate these certificates as per the Organization security policy
  7. and many more…

Here, comes Istio service mesh to the rescue. Istio takes care of most of the above challenges which we could see as part of the demonstration described in the following sections.

I deployed Istio service mesh on an AWS EKS cluster and enabled it for one of the namespaces back-end to be used by a sample application hello-world-rest-api as part of creating a PoC.

The sole purpose of this PoC is to demonstrate how Istio service mesh can be deployed on any EKS cluster and can be enabled for different applications deployed on the cluster.

What is Istio — A short introduction

Before, delving deeper into the PoC, a quick re-cap on what Istio Service mesh helps to achieve???

Istio is an open source service mesh that layers transparently onto existing distributed applications. Istio’s powerful features provide a uniform and more efficient way to secure, connect, and monitor services. Istio is the path to load balancing, service-to-service authentication, and monitoring — with few or no service code changes. Its powerful control plane brings vital features, including:

  • Secure service-to-service communication in a cluster with TLS encryption, strong identity-based authentication, and authorization
  • Automatic load balancing for HTTP, gRPC, WebSocket, and TCP traffic
  • Fine-grained control of traffic behaviour with rich routing rules, retries, failovers, and fault injection
  • A pluggable policy layer and configuration API supporting access controls, rate limits and quotas
  • Automatic metrics, logs, and traces for all traffic within a cluster, including cluster ingress and egress

This PoC demonstration covers only the first bullet point mentioned above which talks about how to secure service-to-service communication between applications within an EKS cluster by injecting istio-proxy side-car envoy into application pods and enabling mTLS communication between the services. All this could be done without any change required at the application code level.

Pre-requisites

  • Access to an EKS (or any Kubernetes/OCP) cluster
  • Istio component deployed on the Kubernetes cluster

PoC and Demonstration

Deploy Nginx

  • Check your access to Kubernetes cluster using kubectl cli(either EC2 instance, Cloud9, AWS Workspace etc.).
  • Copy the content of the below YAML into a file01-nginx-deployment.yaml. This manifest file will create a namespace front-end and create a deployment named nginx and a service called nginx within that namespace.
apiVersion: v1
kind: Namespace
metadata:
name: front-end
---
apiVersion: apps/v1
kind: Deployment
metadata:
labels:
app: nginx
name: nginx
namespace: front-end
spec:
replicas: 1
selector:
matchLabels:
app: nginx
template:
metadata:
labels:
app: nginx
spec:
containers:
- image: nginx
imagePullPolicy: IfNotPresent
name: nginx
ports:
- containerPort: 80
---
apiVersion: v1
kind: Service
metadata:
labels:
app: nginx
name: nginx
namespace: front-end
spec:
ports:
- port: 80
protocol: TCP
targetPort: 80
selector:
app: nginx
  • Apply the manifest file to create the resources in the EKS Cluster.
$ kubectl apply -f 01-nginx-deployment.yaml

Above command will produce an output like what is shown below:

namespace/front-end created
deployment.apps/nginx created
service/nginx created
  • Verify that the nginx pod is in Ready state.
$ kubectl get po -n front-end

Above command will produce an output like what is shown below:

NAME                     READY   STATUS    RESTARTS   AGE
nginx-845d4d9dff-pqjgx 1/1 Running 0 116s

Note — The pod name above would differ in your case which is expected.

Deploy hello-world-rest-api

  • Copy the content of the below YAML into a file 02-helloworld-deployment.yaml. This manifest file will create a namespace back-end and create a deployment named hello-world-rest-api and a service called hello-world-rest-api within that namespace.
apiVersion: v1
kind: Namespace
metadata:
name: back-end
---
apiVersion: apps/v1
kind: Deployment
metadata:
labels:
app: hello-world-rest-api
name: hello-world-rest-api
namespace: back-end
spec:
replicas: 1
selector:
matchLabels:
app: hello-world-rest-api
template:
metadata:
labels:
app: hello-world-rest-api
spec:
containers:
- image: in28min/hello-world-rest-api:0.0.1.RELEASE
imagePullPolicy: IfNotPresent
name: hello-world-rest-api
ports:
- name: liveness-port
containerPort: 8080
hostPort: 8080
resources:
requests:
cpu: 200m
memory: 512Mi
limits:
cpu: 400m
memory: 1024Mi #256Mi
readinessProbe:
httpGet:
path: /
port: liveness-port
failureThreshold: 1
periodSeconds: 10
initialDelaySeconds: 30
livenessProbe:
httpGet:
path: /
port: liveness-port
failureThreshold: 3
periodSeconds: 10
initialDelaySeconds: 30
---
apiVersion: v1
kind: Service
metadata:
labels:
app: hello-world-rest-api
name: hello-world-rest-api
namespace: back-end
spec:
#type: LoadBalancer
ports:
- port: 8080
protocol: TCP
selector:
app: hello-world-rest-api
  • Apply the manifest file to create the resources in the EKS Cluster.
$ kubectl apply -f 02-helloworld-deployment.yaml

Above command will produce an output like what is shown below:

namespace/back-end created
deployment.apps/hello-world-rest-api created
service/hello-world-rest-api created
  • Verify that the hello-world-rest-api pod is in Ready state.
$ kubectl get po -n back-end

Above command will produce an output like what is shown below:

NAME                                    READY   STATUS    RESTARTS   AGE
hello-world-rest-api-8665c556d8-ghhwd 1/1 Running 0 43s

Note — The pod name above would differ in your case which is expected.

Test communication from pod to service

  • Test the communication from Nginx pod to hello-world-rest-api pod by making a cURL request to the service hello-world-rest-api
kubectl exec $(kubectl get pod -l app=nginx -o jsonpath={.items..metadata.name} -n front-end) -c nginx -n front-end -- curl http://hello-world-rest-api.back-end:8080 -o /dev/null -s -w "From nginx.front-end to hello-world-rest-api.back-end - HTTP Response Code: %{http_code}\n"

Above command will produce an output like what is shown below:

From nginx.front-end to hello-world-rest-api.back-end - HTTP Response Code: 200

Enable Istio injection on back-end namespace

  • To inject Istio side-car envoy proxy into the hello-world-rest-api pod in back-end namespace, execute the following command to add label istio-injection=enabled to back-end namespace:
$ kubectl label ns back-end istio-injection=enabled

Above command will produce an output like what is shown below:

namespace/back-end labeled

Important — Adding label to a namespace does not inject Istio side-car envoy proxy into an existing pod running inside the namespace. The pod must be deleted and re-created in order to inject the side-car.

  • Delete and re-create hello-world-rest-api pod:
$ kubectl delete po $(kubectl get pod -l app=hello-world-rest-api -o jsonpath={.items..metadata.name} -n back-end) -n back-end

Above command will produce an output like what is shown below:

pod "hello-world-rest-api-8665c556d8-ghhwd" deleted
  • Verify if the hello-world-rest-api pod is injected with istio side-car envoy proxy container. This can be easily verified by checking the count under column READY which must show 2/2 now.
$ kubectl get po -n back-end

Above command will produce an output like what is shown below:

NAME                                    READY   STATUS    RESTARTS   AGE
hello-world-rest-api-8665c556d8-8cdmq 2/2 Running 0 2m41s
  • Verify the logs of side-car envoy proxy container injected into the hello-world-rest-api pod:
kubectl logs $(kubectl get pod -l app=hello-world-rest-api -o jsonpath={.items..metadata.name} -n back-end) -n back-end -c istio-proxy | tail -2

Above command will produce an output like what is shown below:

2022-01-31T02:36:55.109980Z     info    Initialization took 568.138123ms
2022-01-31T02:36:55.110000Z info Envoy proxy is ready

Test communication from pod to service

  • Test the communication from Nginx pod to hello-world-rest-api pod by making a cURL request to the service hello-world-rest-api
kubectl exec $(kubectl get pod -l app=nginx -o jsonpath={.items..metadata.name} -n front-end) -c nginx -n front-end -- curl http://hello-world-rest-api.back-end:8080 -o /dev/null -s -w "From nginx.front-end to hello-world-rest-api.back-end - HTTP Response Code: %{http_code}\n"

Above command will produce an output like what is shown below:

From nginx.front-end to hello-world-rest-api.back-end - HTTP Response Code: 200

Important — It must be noted here that even after enabling Istio side-car envoy proxy on hello-world-rest-api pod, the cURL request is still returning a response code of 200 over plain-text. This is due to the fact that Istio has a default mTLS configuration set as PERMISSIVE which means allow both plain-text as well as encrypted communication.

  • Verify the logs of side-car envoy proxy container injected into the hello-world-rest-api pod:
kubectl logs $(kubectl get pod -l app=hello-world-rest-api -o jsonpath={.items..metadata.name} -n back-end) -n back-end -c istio-proxy | tail -2

Above command will produce an output like what is shown below:

2022-01-31T02:36:55.110000Z     info    Envoy proxy is ready
{"accessLogFormat":"{\"traceId\":\"bb829957adecffe92ee476a797187ad2\",\"authority\":\"hello-world-rest-api.back-end:8080\",\"bytes_received\":\"0\",\"bytes_sent\":\"14\",\"downstream_local_address\":\"10.40.0.61:8080\",\"downstream_remote_address\":\"10.40.30.123:37352\",\"duration\":\"3\",\"istio_policy_status\":\"-\",\"method\":\"GET\",\"path\":\"/\",\"protocol\":\"HTTP/1.1\",\"request_id\":\"490aa173-a692-9c71-bad0-442275cd35ad\",\"requested_server_name\":\"-\",\"response_code\":\"200\",\"response_flags\":\"-\",\"route_name\":\"default\",\"start_time\":\"2022-01-31T02:42:40.511Z\",\"upstream_cluster\":\"inbound|8080||\",\"upstream_host\":\"10.40.0.61:8080\",\"upstream_local_address\":\"127.0.0.6:40133\",\"upstream_service_time\":\"3\",\"upstream_transport_failure_reason\":\"-\",\"user_agent\":\"curl/7.74.0\",\"x_forwarded_for\":\"-\"}"}

The below picture describes what we have done so far:

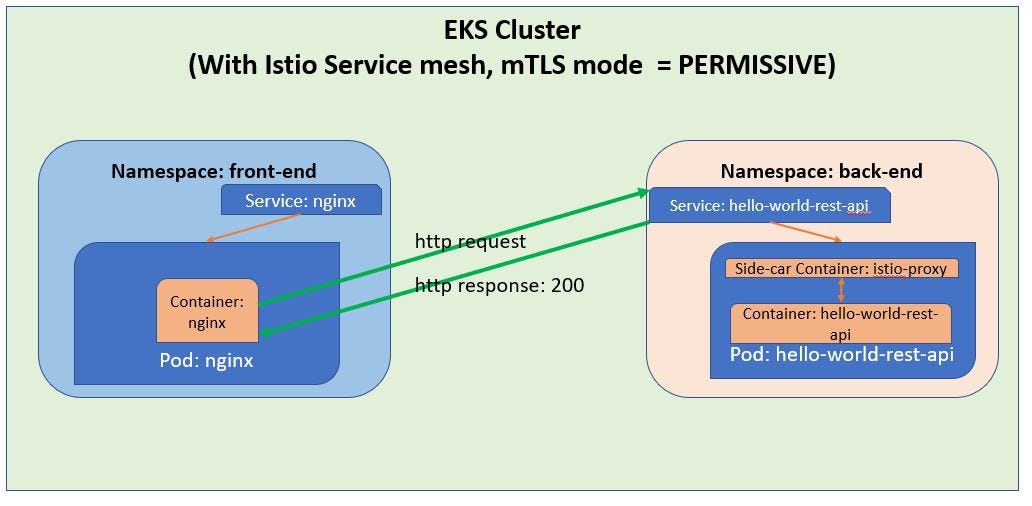

EKS Cluster with Istio Service mesh enabled, mTLS = PERMISSIVE

Enable mTLS mode of STRICT on back-end namespace

  • Copy the content of the below YAML into a file peerAuth_STRICT.yaml. This manifest file will create a Istio Custom Resource (CR) PeerAuthentication named default in back-end namespace. Notice the mTLS mode is set to STRICT.
apiVersion: security.istio.io/v1beta1
kind: PeerAuthentication
metadata:
name: "default"
namespace: "back-end"
spec:
mtls:
mode: STRICT
  • Apply the manifest file to create the custom resource in the EKS Cluster.
$ kubectl apply -f peerAuth_STRICT.yaml

Above command will produce an output like what is shown below:

peerauthentication.security.istio.io/default created

Test communication from pod to service

  • Test the communication from Nginx pod to hello-world-rest-api pod by making a cURL request to the service hello-world-rest-api
kubectl exec $(kubectl get pod -l app=nginx -o jsonpath={.items..metadata.name} -n front-end) -c nginx -n front-end -- curl http://hello-world-rest-api.back-end:8080 -o /dev/null -s -w "From nginx.front-end to hello-world-rest-api.back-end - HTTP Response Code: %{http_code}\n"

Above command will produce an output like what is shown below:

From nginx.front-end to hello-world-rest-api.back-end - HTTP Response Code: 000
command terminated with exit code 56

Important — After enabling Istio side-car envoy proxy on hello-world-rest-api pod with mTLS mode as STRICT, the cURL request is failing and returning a response code of 000 over plain-text.

The below picture describes what we have done so far:

EKS Cluster with Istio Service mesh enabled, mTLS = STRICT

Enable Istio injection on front-end namespace

  • To inject Istio side-car envoy proxy into the nginx pod in front-end namespace, execute the following command to add label istio-injection=enabled to front-end namespace:
$ kubectl label ns front-end istio-injection=enabled

Above command will produce an output like what is shown below:

namespace/front-end labeled

Important — Adding label to a namespace does not inject Istio side-car envoy proxy into an existing pod running inside the namespace. The pod must be deleted and re-created in order to inject the side-car.

  • Delete and re-create nginx pod:
$ kubectl delete po $(kubectl get pod -l app=nginx -o jsonpath={.items..metadata.name} -n front-end) -n front-end

Above command will produce an output like what is shown below:

pod "nginx-845d4d9dff-pqjgx" deleted
  • Verify if the nginx pod is injected with istio side-car envoy proxy container. This can be easily verified by checking the count under column READY which must show 2/2 now.
$ kubectl get po -n front-end

Above command will produce an output like what is shown below:

NAME                     READY   STATUS    RESTARTS   AGE
nginx-845d4d9dff-nqb9x 2/2 Running 0 59s

Test communication from pod to service

  • Test the communication from Nginx pod to hello-world-rest-api pod by making a cURL request to the service hello-world-rest-api
kubectl exec $(kubectl get pod -l app=nginx -o jsonpath={.items..metadata.name} -n front-end) -c nginx -n front-end -- curl http://hello-world-rest-api.back-end:8080 -o /dev/null -s -w "From nginx.front-end to hello-world-rest-api.back-end - HTTP Response Code: %{http_code}\n"

Above command will produce an output like what is shown below:

From nginx.front-end to hello-world-rest-api.back-end - HTTP Response Code: 200

Important — The communication between nginx pod and hello-world-rest-api pod is enabled with mTLS now.

  • Verify the logs of side-car envoy proxy container injected into the hello-world-rest-api pod:
kubectl logs $(kubectl get pod -l app=hello-world-rest-api -o jsonpath={.items..metadata.name} -n back-end) -n back-end -c istio-proxy | tail -2

Above command will produce an output like what is shown below:

{"accessLogFormat":"{\"traceId\":\"-\",\"authority\":\"-\",\"bytes_received\":\"0\",\"bytes_sent\":\"0\",\"downstream_local_address\":\"10.40.0.61:8080\",\"downstream_remote_address\":\"10.40.30.123:42792\",\"duration\":\"0\",\"istio_policy_status\":\"-\",\"method\":\"-\",\"path\":\"-\",\"protocol\":\"-\",\"request_id\":\"-\",\"requested_server_name\":\"-\",\"response_code\":\"0\",\"response_flags\":\"NR\",\"route_name\":\"-\",\"start_time\":\"2022-01-31T02:55:10.063Z\",\"upstream_cluster\":\"-\",\"upstream_host\":\"-\",\"upstream_local_address\":\"-\",\"upstream_service_time\":\"-\",\"upstream_transport_failure_reason\":\"-\",\"user_agent\":\"-\",\"x_forwarded_for\":\"-\"}"}
{"accessLogFormat":"{\"traceId\":\"08e4cc523dbdbfb4e0c4db0401657cc0\",\"authority\":\"hello-world-rest-api.back-end:8080\",\"bytes_received\":\"0\",\"bytes_sent\":\"14\",\"downstream_local_address\":\"10.40.0.61:8080\",\"downstream_remote_address\":\"10.40.30.137:46580\",\"duration\":\"1\",\"istio_policy_status\":\"-\",\"method\":\"GET\",\"path\":\"/\",\"protocol\":\"HTTP/1.1\",\"request_id\":\"1f7a3c40-6a2a-9aed-8ba3-25a13e5866aa\",\"requested_server_name\":\"outbound_.8080_._.hello-world-rest-api.back-end.svc.cluster.local\",\"response_code\":\"200\",\"response_flags\":\"-\",\"route_name\":\"default\",\"start_time\":\"2022-01-31T03:00:53.199Z\",\"upstream_cluster\":\"inbound|8080||\",\"upstream_host\":\"10.40.0.61:8080\",\"upstream_local_address\":\"127.0.0.6:53215\",\"upstream_service_time\":\"1\",\"upstream_transport_failure_reason\":\"-\",\"user_agent\":\"curl/7.74.0\",\"x_forwarded_for\":\"-\"}"}

The below picture describes what we have done so far:

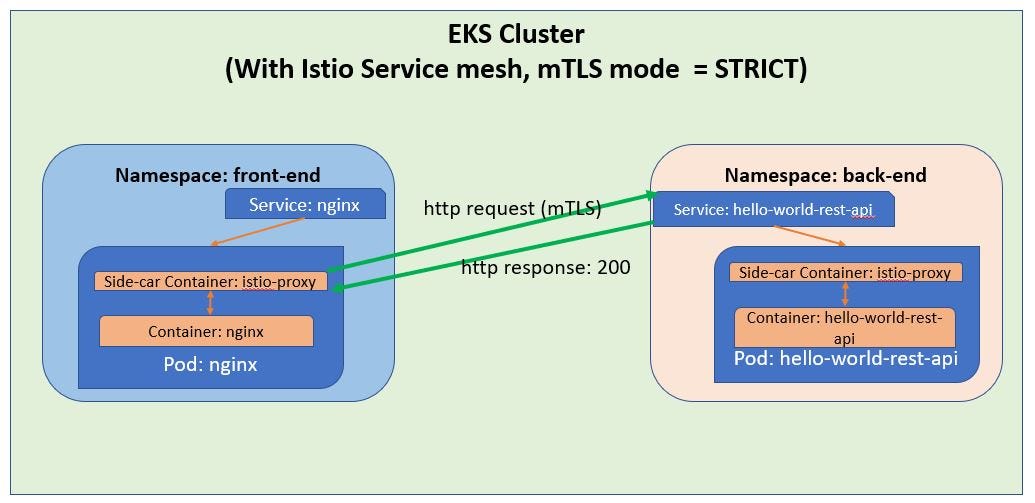

EKS Cluster with Istio Service mesh enabled, mTLS = STRICT, OK

Cleaning Up

  • Clean the resource created as part of the PoC and Demonstration. Istio CR PeerAuthentication named default in back-end namespace.
$  kubectl delete -f peerAuth_STRICT.yaml

Above command will produce an output like what is shown below:

peerauthentication.security.istio.io "default" deleted
  • Delete the nginx resources.
$ kubectl delete -f 01-nginx-deployment.yaml

Above command will produce an output like what is shown below:

namespace "front-end" deleted
deployment.apps "nginx" deleted
service "nginx" deleted
  • Delete the hello-world-rest-api resources.
$ kubectl delete -f 02-helloworld-deployment.yaml

Above command will produce an output like what is shown below:

namespace "back-end" deleted
deployment.apps "hello-world-rest-api" deleted
service "hello-world-rest-api" deleted

Congratulations!!! You have successfully used the mTLS encryption offered out-of-the-box by Istio for your application.

References: https://istio.io/latest/docs/tasks/security/authentication/mtls-migration/

--

--

--

Kubernetes/Openshift/Cloud Architect

Love podcasts or audiobooks? Learn on the go with our new app.

Recommended from Medium

Day 8 — Triumph over challenges

BGP Route-Reflector

Weekly Update #20 (17/4/22)

The perfect Gitflow

Personal Website 101

An Idiot’s Guide to DeltaFi

FAQ about Flutter Mobile App Development

Lambda function — Python

Get the Medium app

A button that says 'Download on the App Store', and if clicked it will lead you to the iOS App store
A button that says 'Get it on, Google Play', and if clicked it will lead you to the Google Play store
Ritesh Raj

Ritesh Raj

Kubernetes/Openshift/Cloud Architect

More from Medium

Heterogeneous Storage Monitoring for Kubernetes

Secure Docker-in-Kubernetes

Sailing Micro Integrator In Kubernetes

Keeping Secrets hidden on public github repository during deployment to Kubernetes cluster
